ZPCS-7351022D
產品規格
| MODEL NO | 長 | 寬 | 高 | KG | 2D | 3D | ||||||||||||||||||||||||||
|
ZPCS-7351022D |
366 | 166 | 57 | 17.5 |
download
|
download
|
||||||||||||||||||||||||||
|
ZPCS-73505228
ZPCS-73505228

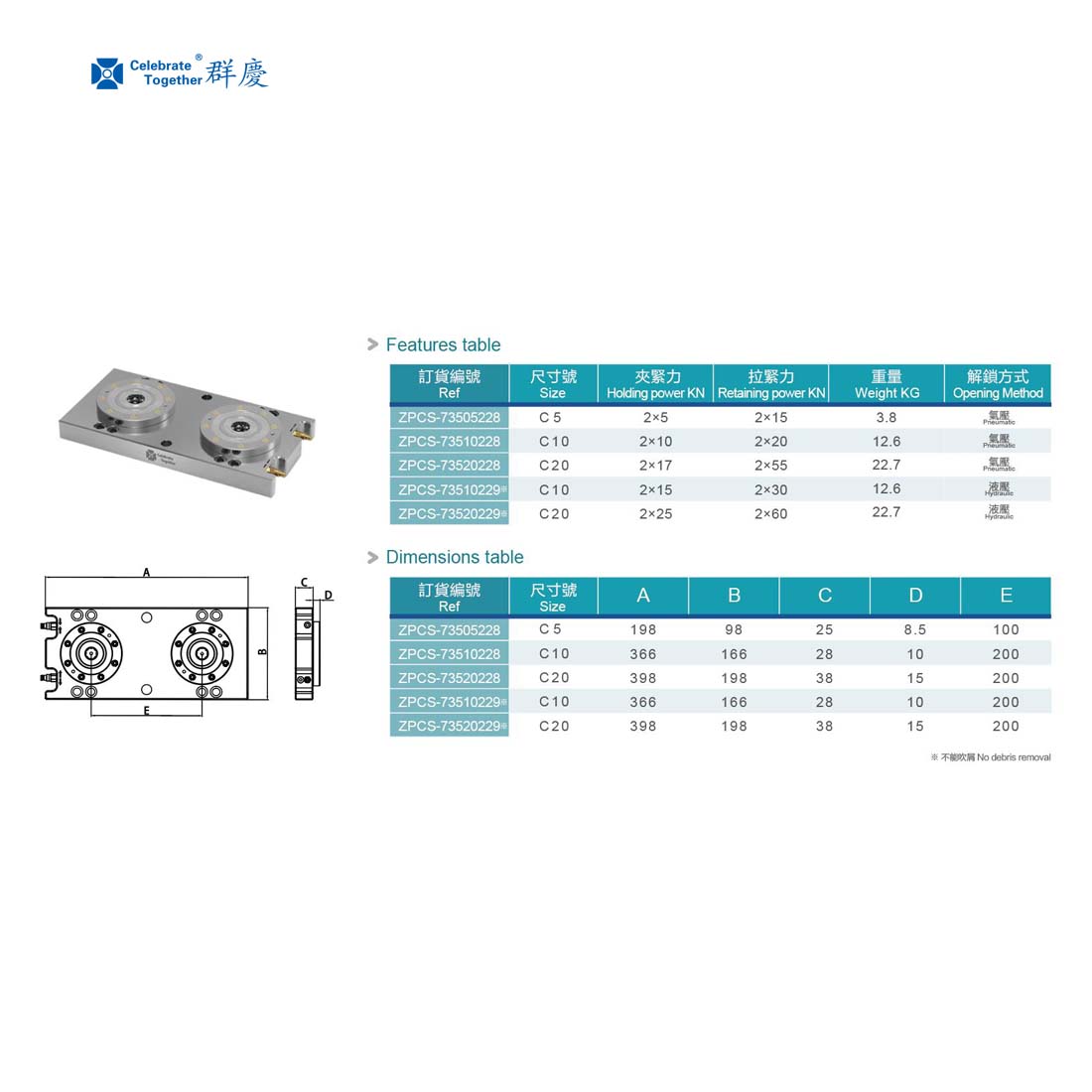

Features table
Dimensions table
|
200 | 130 | 33.5 | 3.8 |
download
|
download
|
||||||||||||||||||||||||||
|
ZPCS-73510228
ZPCS-73510228
Features table
Dimensions table
|
366 | 166 | 38 | 12.6 |
download
|
download
|
||||||||||||||||||||||||||
|
ZPCS-73520228
ZPCS-73520228
Features table
Dimensions table
|
398 | 198 | 53 | 22.7 |
download
|
download
|
||||||||||||||||||||||||||
|
ZPCS-73510229*
ZPCS-73510229*
Features table
Dimensions table
|
366 | 166 | 38 | 12.6 |
download
|
download
|
||||||||||||||||||||||||||
|
ZPCS-73520229*
ZPCS-73520229*
Features table
Dimensions table
|
398 | 198 | 53 | 22.7 |
download
|
download
|
加入購物車
2D下載
產品概述
材質 | |||
氣壓/液壓解鎖 | 表面及活塞硬化處理 | 模具鋼(或客戶的選擇) | 重復定位精度≤0.005mm |
說明
通過基板上的沉頭孔鎖緊在T型槽上，安裝簡單；
至少有兩個定位孔，以便準確定位
