CT-805925
加入購物車
2D下載

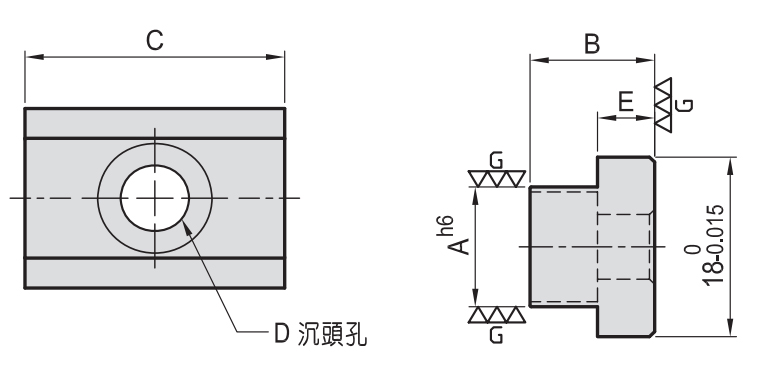

訂貨編號 | A | B | C | D | E | KG |
CT-805925 | 12 | 12 | 25 | M6 | 5.5 | 0.035 |
產品規格
| MODEL NO | 長 | 寬 | 高 | KG | 2D | 3D | ||||||||||||||
|
CT-805925 |
25 | 12 | 12 | 0.035 |
download
|
download
|
||||||||||||||
|
CT-805926
CT-805926
|
25 | 14 | 12 | 0.040 |
download
|
download
|
||||||||||||||
|
CT-805927
CT-805927
|
25 | 16 | 12 | 0.040 |
download
|
download
|
||||||||||||||
|
CT-805928
CT-805928
|
25 | 20 | 12 | 0.040 |
download
|
download
|
||||||||||||||
|
CT-805929
CT-805929
|
25 | 22 | 12 | 0.040 |
download
|
download
|
產品概述
材質 | 熱處理 | 用途 | |||
S45C | HRC 50° | 用于各治具零件與 T形溝鞍板或鞍座組合之定位用 | |||
