CT-805973
加入購物車
2D下載

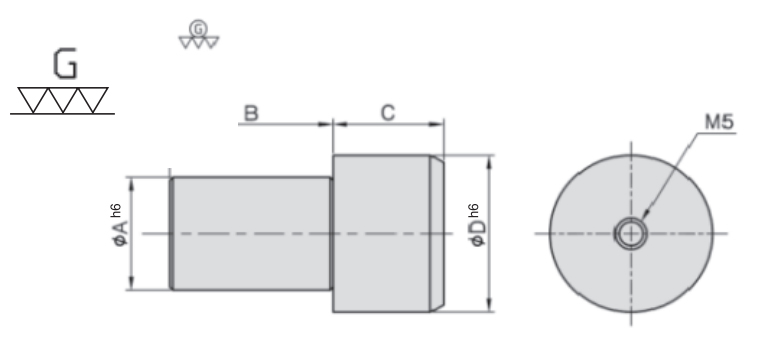

訂貨編號 | A | B | C | D | KG |
CT-805973 | 8 | 13 | 12 | 12 | 0.012 |
產品規格
| MODEL NO | 長 | 寬 | 高 | KG | 2D | 3D | ||||||||||||
|
CT-805973 |
12 | 12 | 25 | 0.012 |
download
|
download
|
||||||||||||
|
CT-805974
CT-805974
|
16 | 16 | 32 | 0.032 |
download
|
download
|
||||||||||||
|
CT-805975
CT-805975
|
20 | 20 | 37 | 0.052 |
download
|
download
|
||||||||||||
|
CT-805976
CT-805976
|
22 | 22 | 39 | 0.072 |
download
|
download
|
||||||||||||
|
CT-805977
CT-805977
|
25 | 25 | 42 | 0.098 |
download
|
download
|

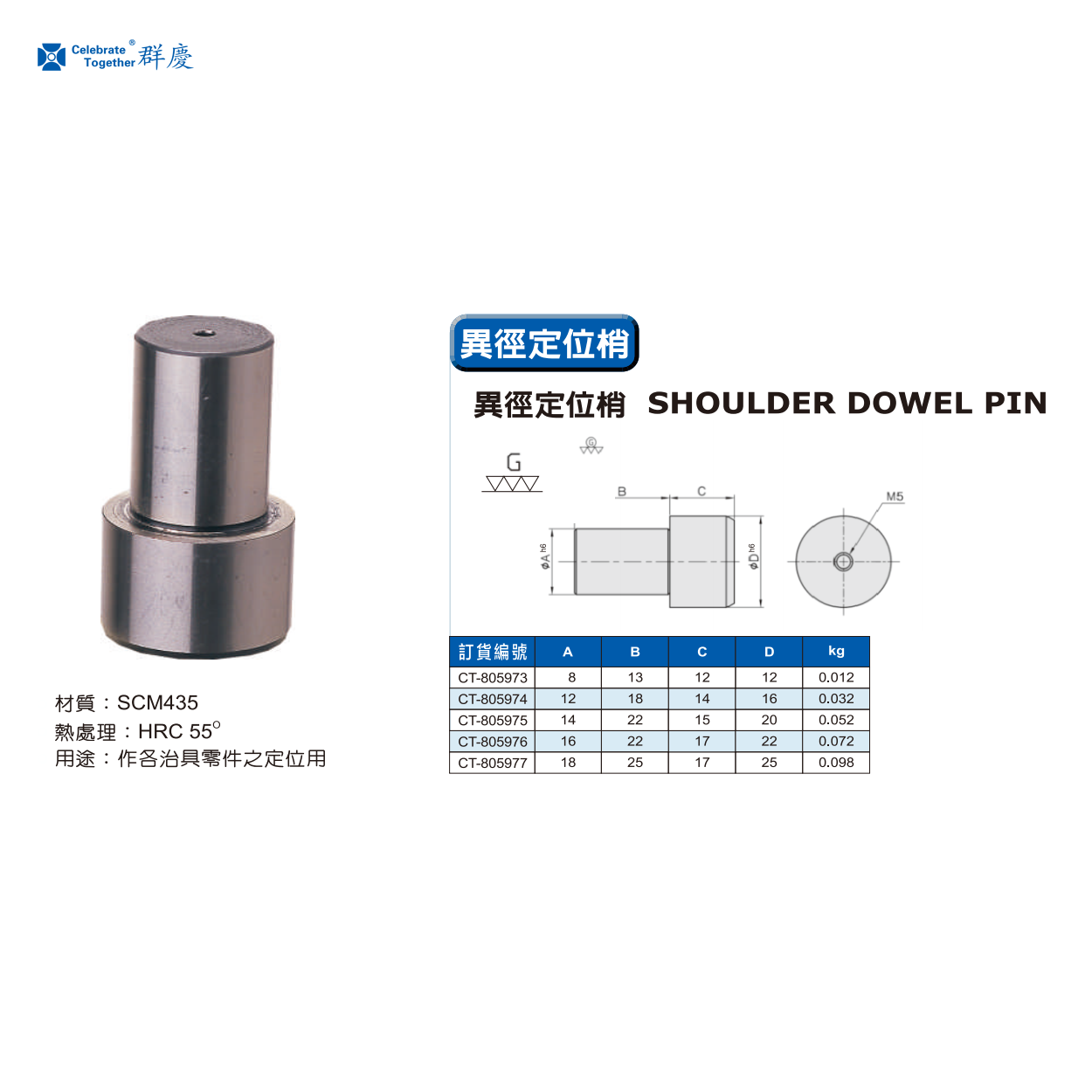

產品概述
材質 | 熱處理 | 用途 | |||
SCM435 | HRC 55° | 作各治具零件之定位用 | |||
